AXU0278 – AX-CTL-1L

Quantity Available: 152

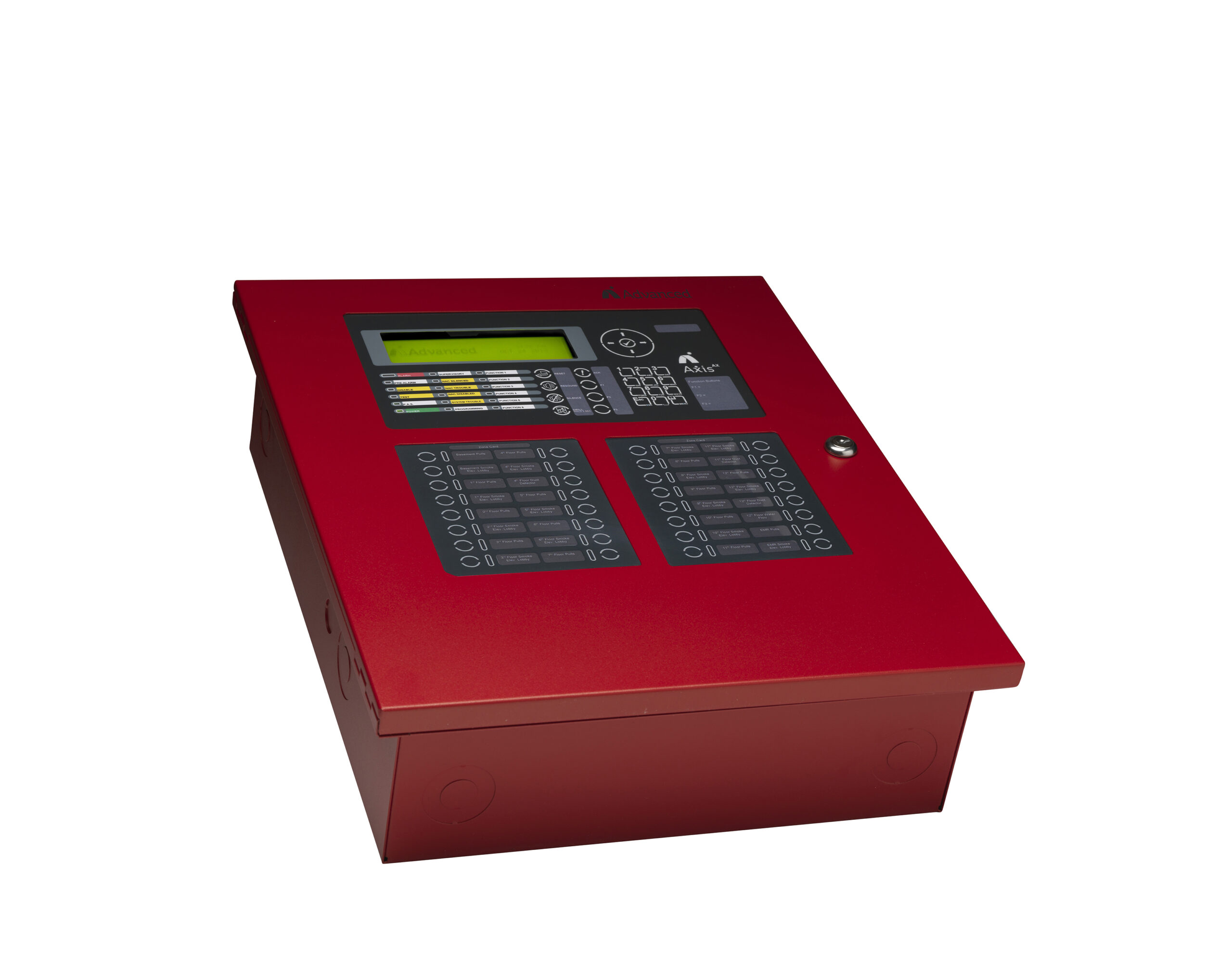

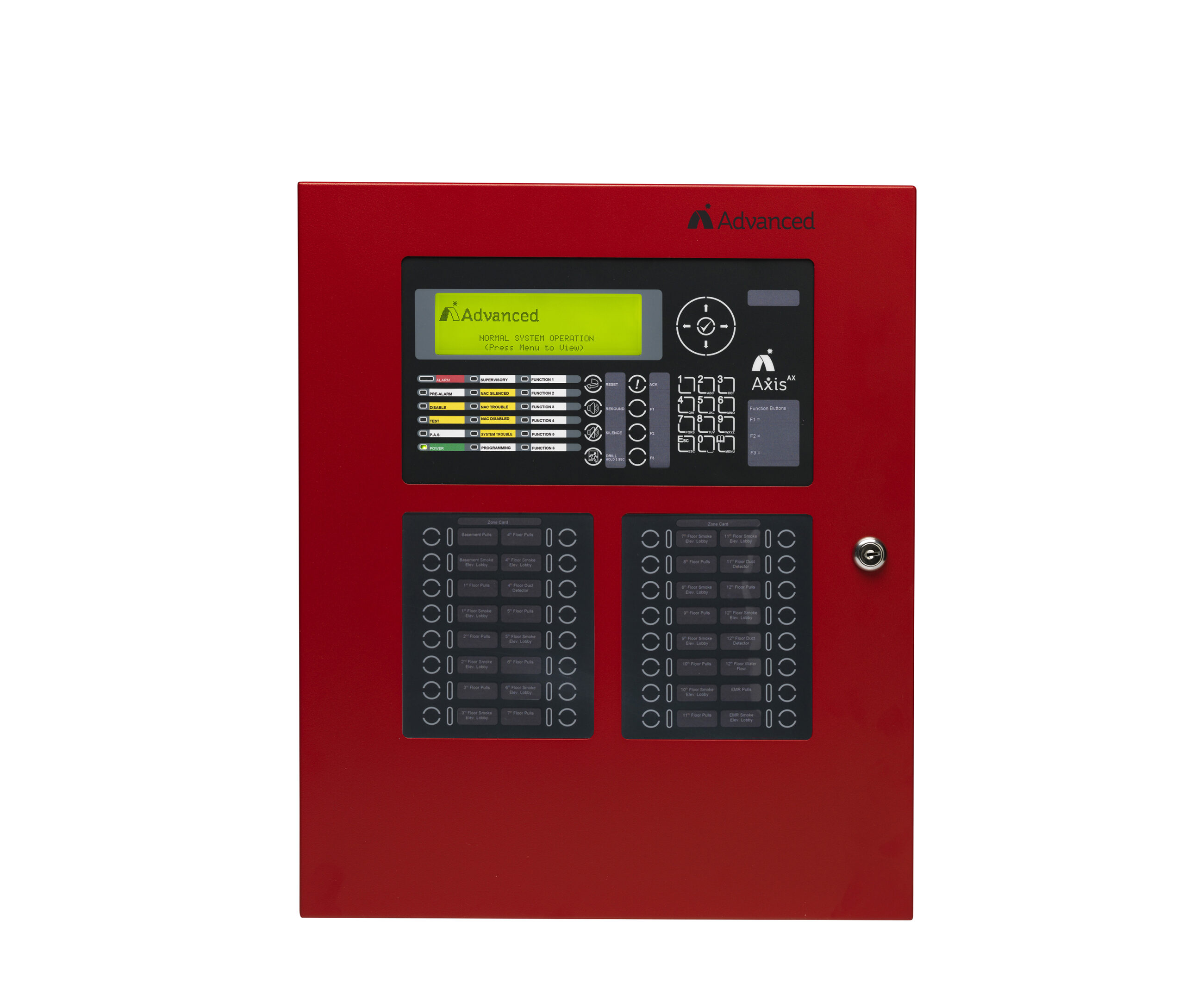

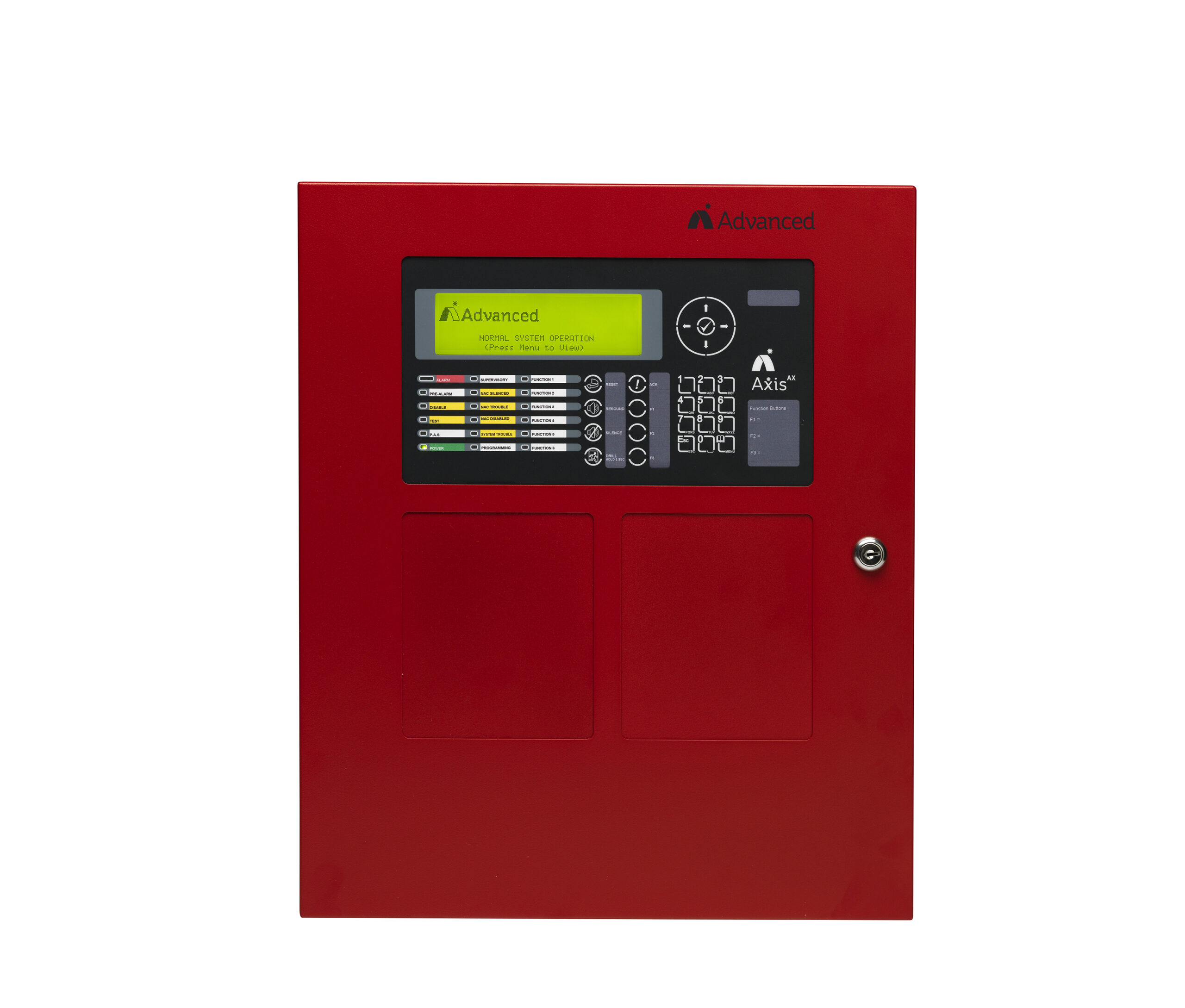

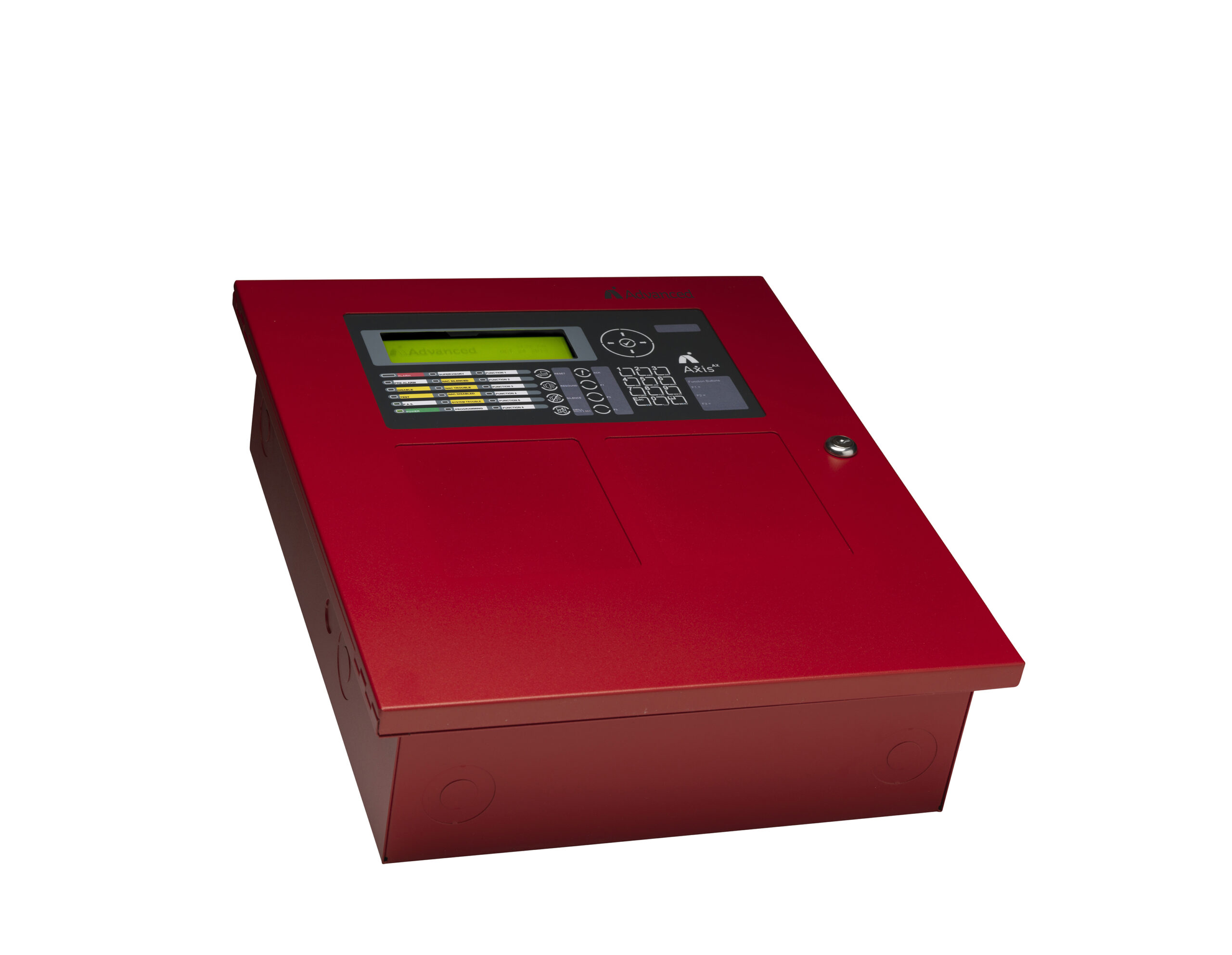

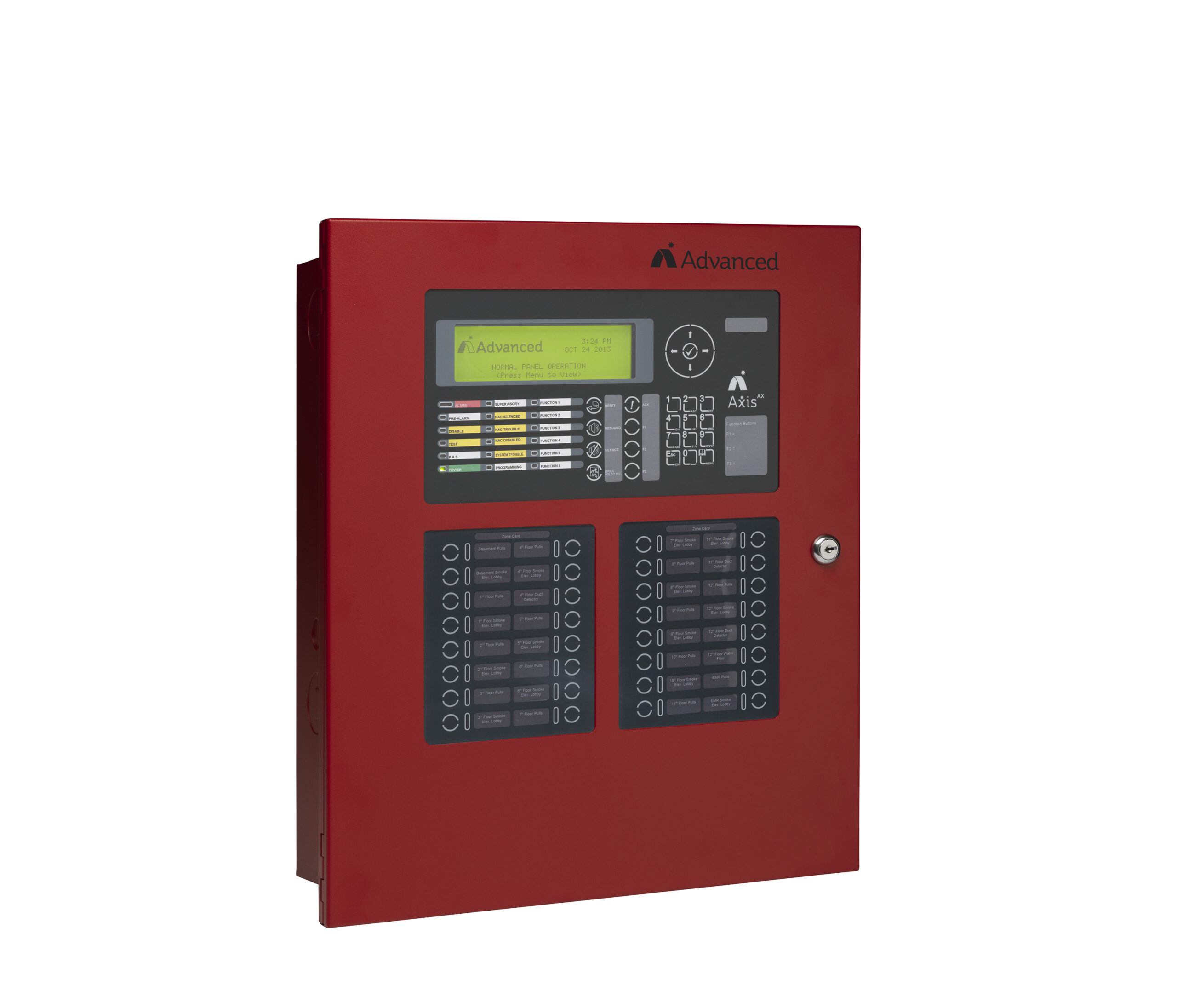

Red Single Loop Networkable Panel (Large Expandable enclosurehas space for two aptional Switch/led Modules on inner door)

Advanced user interface with graphical LCD
Multi-pattern & two-stage NAC control
Remote diagnostic capabilities
Advanced networking - up to 200 FACP
Built-in intelligent multi-meter
Up to 504 analogue-addressable points
Automatic drift compensation per detector
Automatic detector testing with maintenance alert
Alarm verification and PAS
Class X, A or B SLC operation (supports loop-powered technology)
Synchronisation of audibles and visuals (panel or network wide)
User-friendly PC-NeT field configuration program
5 to 10 Amps of system power
installer-friendly “auto-learn/loop detection” feature that permits
rapid recognition simplifies the immediate assignment of critical
life safety functions. Assignments include intelligent detector
type and operation criteria, addressable input device recognition
tools, Axis AX fire panels can adapt to virtually any application
time-consuming complexities associated with I/O relationship
programming such as two-stage multi-pattern NAC control,
intelligent detector drift compensation, precision
response/sensitivity mode settings and flexible timing functions
Features (continued)
“Auto-learn/loop detection” programming
Class A or B NAC circuits
Voltage-regulated NACs (compatible with most listed NAC devices)

AX CTL 1L Datasheet
